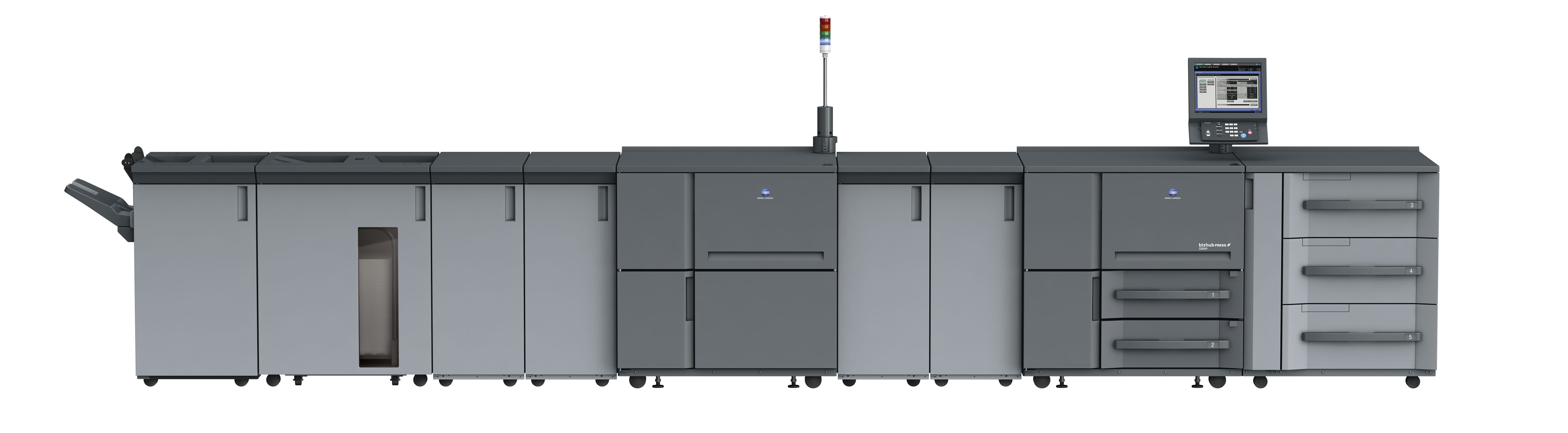

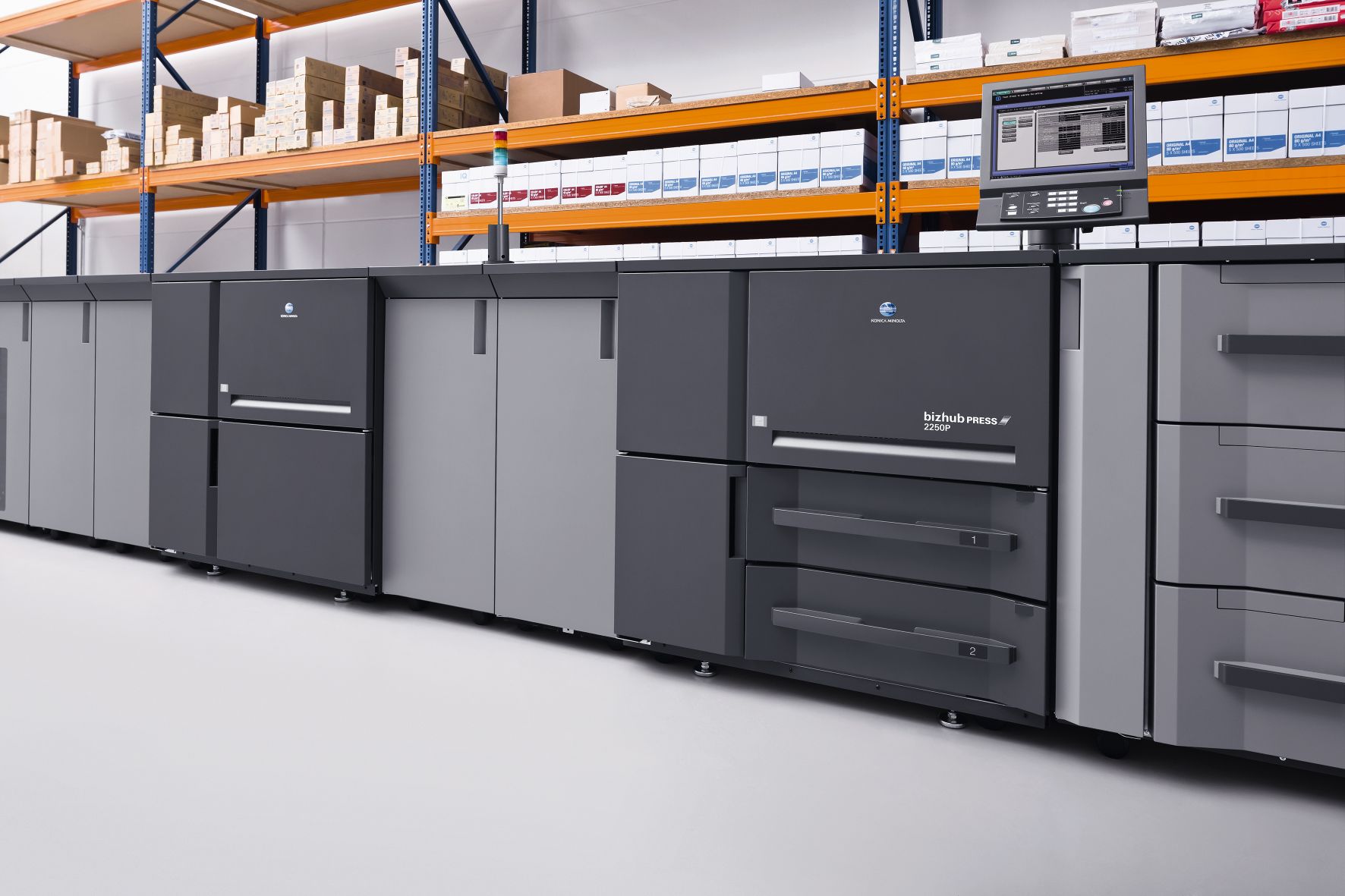

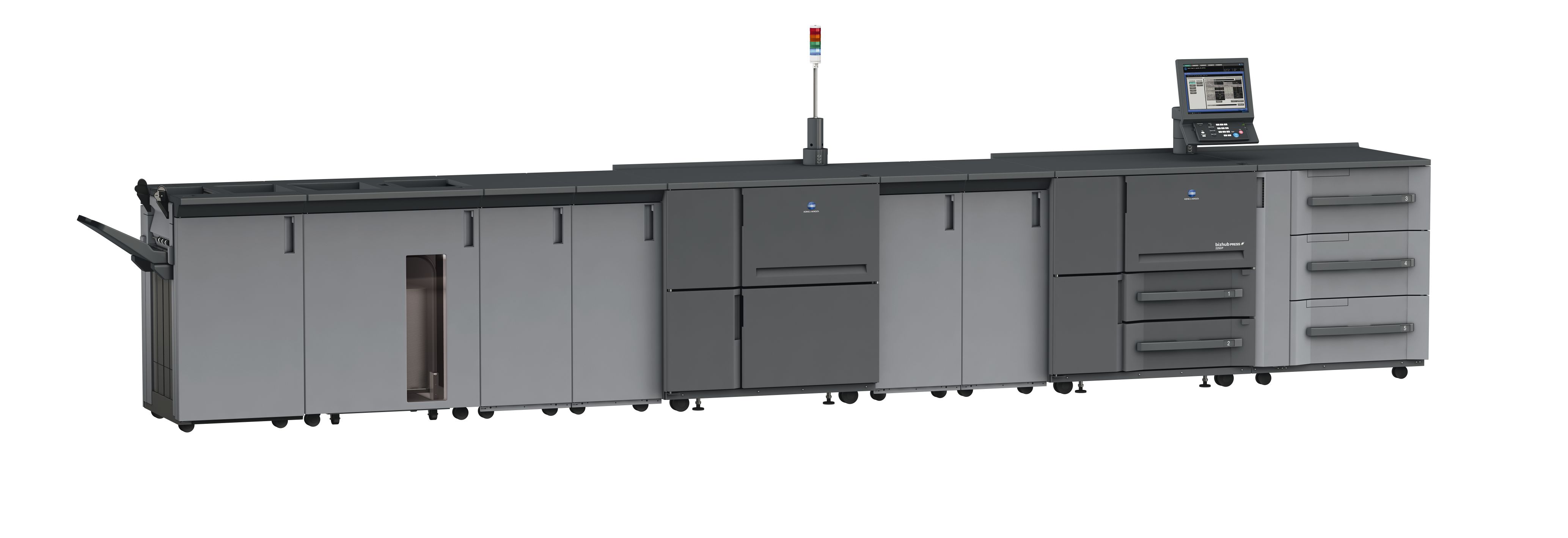

bizhub PRESS 2250P
Üst düzey üretim ortamındaki baskı tedarikçileri ve CRD'ler, çok üretken ve verimli baskı sistemlerine ihtiyaç duyar. En yüksek çift taraflı baskı hızı, güvenilirliği, esnekliği ve olağanüstü baskı kalitesiyle bizhub PRESS 2250P bu beklentileri karşılar. 2250P, çok çeşitli baskı ürünlerini en kısa sürede üretecek şekilde geliştirilmiştir. Üst düzey üretim ortamlarının modern gereksinimlerini karşılamak için mükemmel yardımcıdır.
Kağıt işleme
- Hava emmeli veya hava destekli besleme teknolojisi
- 18.000 kağıda kadar kağıt girişi kapasitesi veya 14.000 kağıtlık kağıt besleme ile 5000 kağıtlık giriş sonrası kapasite
- Maksimum 11 kağıt giriş tepsisi
Baskı kontrolörü
- Özellikle üst düzey kağıt kataloğu fonksiyonu sayesinde rahat kullanım
- Kuyruktaki işlerin ayrıntılı genel görünümünü sunan program fonksiyonu
Simitri® HD Toner
- Ofset ile eşit düzeyde, en yüksek kalite için
- Muazzam ortam esnekliği için
TEKNIK ÖZELLIKLER
PRINTER SPECIFICATIONS
- Print speed A4 Duplex: up to 250 ipm / Simplex: up to 125 ppm
- Print speed A3 Duplex: up to 140 ipm / Simplex: up to 70 ppm
- Print resolution 1,200 x 1,200 dpi
SYSTEM SPECIFICATIONS
- Paper weight 40-350 gsm
- Paper sizes Min.: 95 x 139 mm;Max.: 324 x 483 mm (with PF-703)
- Maximum image area 314 x 483 mm (with PF-703)
- Maximum paper input capacity Max.: 18,000 sheets; main unit: up to 3,000 sheets
- Maximum paper output capacity Max.: 15,000 sheets (plus sub trays)
- Main unit dimensions (W x D x H) 3,500 x 910 x 1,454 mm;
(Mainbody 1 + RU-510 + TD-501 + Mainbody 2 + RU-509 + RU-510)
- Main unit weight 890 kg
CONTROLLER SPECIFICATIONS
- Type 1 Embedded Konica Minolta controller
ACCESSORIES
- Paper feed unit Paper feed unit PF-706
3 magazines; paper capacity: up to 6,000 sheets; paper weight: 40-350 gsm; standard paper sizes: A5 to A3+ (SRA3); min. paper size: 95 x 139 mm; max. paper size: 324 x 463 mm;
optional preprinted paper feed kit PP-701 available
Paper feed unit PF-703
3 magazines with air-suction technology; paper capacity: up to 5,000 sheets; paper weight: 40-350 gsm; standard paper sizes: A5 to A3+; min. paper size: 95 x 139 mm; max. paper size: 324 x 483 mm;
optional heating unit HT-505 available
- Folding and punching unit Folding and punching unit FD-503
Preprinted sheet insertion (PI): 2 PI trays for 500 sheets each punching (2 and 4 hole); folding (half-fold, Z-fold, gate-fold, letter fold-in, letter fold-out, double-parallel-fold); sub tray for up to 200 sheets
- Relay unit Relay unit RU-510
Sheet reverser; adapts processing speed to 125 ppm
Relay unit RU-509
Mechanical decurling; Colour density control
- Multi (GBC) punching unit Multi (GBC) punching unit GP-501
Multi punching of A4 sheets; user replaceable die sets for: velo bind, plastic comb, wire bind, colour coil, pro click; paper weight: 75-216 gsm
- Auto ring binder Auto ring binder GP-502
Stacking, punching and binding of books, up to 102 sheets;
self-adjusting bind elements (one size fits all);
paper weight: content 75-120 gsm; cover 163-216 gsm
- Booklet making unit Booklet making unit SD-506
Booklet making of up to 50 sheets (200 images); saddle stitching, trimming; output tray for up to 50 booklets; sub tray for up to 200 sheets; Multi-letter fold-in (up to 5 sheets); multi-half-fold (up to 5 sheets)
Booklet making unit SD-513
The SD-513 offers fully automated
creasing, three edge trimming and spine corner forming, helping to
reduce delivery times and freeing up staff for increased productivity.
Watkiss Powersquare 224KR
Booklet making of up to 56 sheets (224 images); Stitching, folding, spine forming and trimming.
- Stacking unit Stacking unit LS-506
Up to 5,000 sheets stacking capacity; trolley mounted stacker; auto-shift stacking; sub tray for up to 200 sheets; paper clamp mechanism
Stacking unit LS-505
Up to 5,000 sheets stacking capacity; up to three units can be installed; up to 15,000 sheets stacking capacity; trolley mounted stacker; auto-shift stacking;sub tray for up to 200 sheets; paper clamp mechanism
- Perfect binding unit Perfect binding unit PB-503
Hot melt glue binding system; integrated 1-side trimming of cover sheets; books from A5 up to A4+ (307 x 221 mm); books from 10 sheets up to 30 mm spine width; cover paper tray for up to 1,000 sheets; sub tray for up to 200 sheets; book stacking capacity; 3,300 sheets; (2 stacks)
- Stapling unit Stapling unit FS-532
Stapling of up to 100 sheets; two-point and corner stapling; variable staple length (cutting mechanism); output for up to 4,200 sheets (A4); sub tray for up to 200 sheets; auto-shift sorting and grouping
- Saddle stitching kit Saddle stitching kit SD-510 (for FS-532)
Booklet making of up to 20 sheets (80 images); saddle stitching; cover sheets from 50 to 300 gsm; output tray for booklets; multi-letter fold-in (up to 5 sheets); multi-half-fold (up to 5 sheets)
- Booklet finisher Saddle stitching kit SD-510 (for FS-532)
Booklet making of up to 20 sheets (80 images); saddle stitching; cover sheets from 50 to 300 gsm; output tray for booklets; multi-letter fold-in (up to 3 sheets); multi-half-fold (up to 5 sheets)
- Punch kit Punch kit PK-522 (for FS-532)
Punching (2 and 4 holes selectable)
- Humidifier unit Humidifier unit HM-102
Humidification decurler
- Tandem relay unit TD-501
- Post inserting unit PI-PFU
- Mount Kit for 3rd party MK-737
- Removable HDD kit RH-101
HD-511
